Specifications

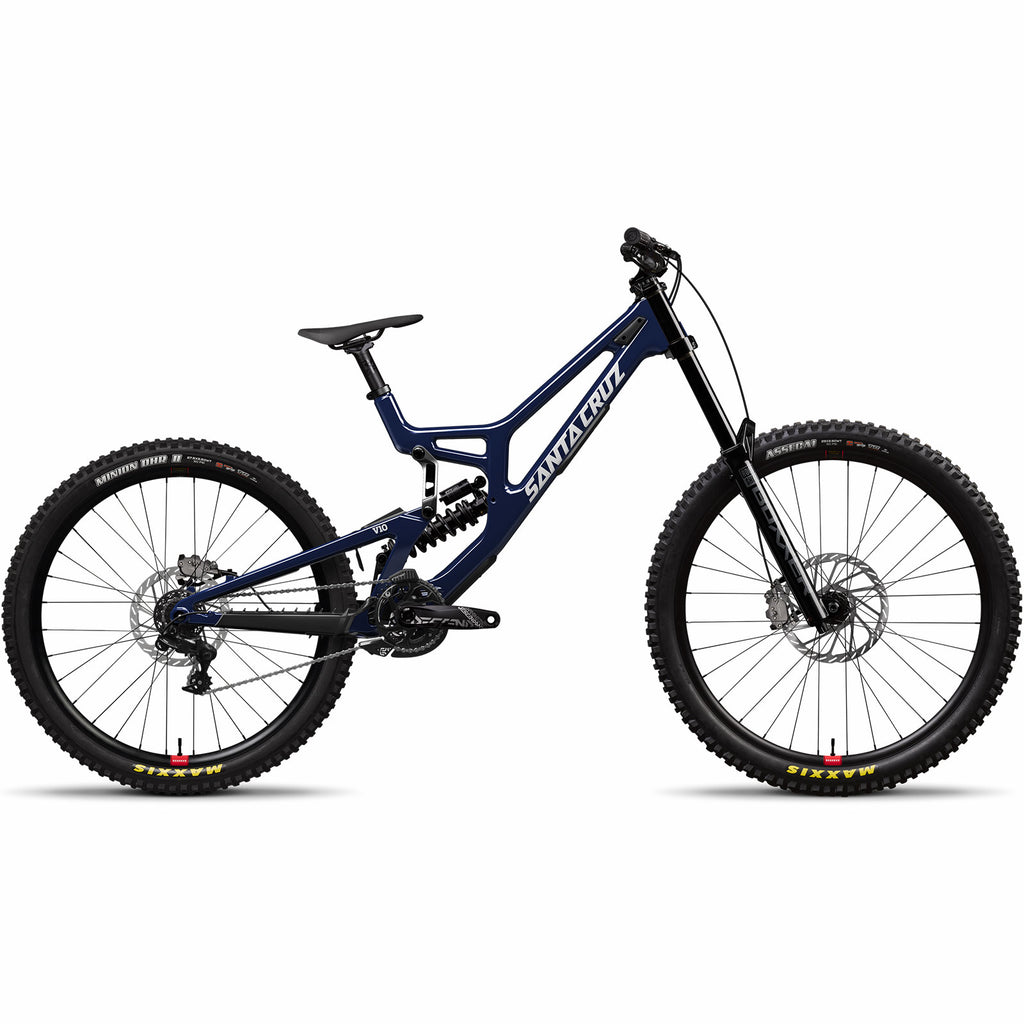

The V10 is the same bike ridden by the Syndicate to World Cup victories. Fully refined, not redefined, the new V10 is for riders looking to just imitate their heroes on Sunday afternoon or find the best lines in the bike park. The kind of rider who knows there’s no replacement for a proper downhill bike. Lap after lap, day after day nothing stands up to the abuse or gives the thrills a downhill bike can. Nothing.
Frame
Carbon CC MX 208mm Travel VPP™
Travel
208mm
Weight
37.70 lbs / 17.10 kg
Wheel Size
MX/29"
Suspension
Fork
RockShock BoXXer Select, 200mm
Shock
RockShox Vivid Select+ Coil S: 400, M: 450lb, L: 500lb, XL: 550lb
Drivetrain
Bottom Bracket
SRAM DUB 83mm Threaded BB
Cassette
SRAM PG720 DH, 11-25t -or- SRAM PG720 DH Slim, 11-25t
Chain
SRAM PC1110, 11spd
Chainguide
E13 LG1+ Chainguide
Crankset
SRAM Descendant DH, 36t All Sizes: 165mm
Rear Derailleur
SRAM GX DH, 7spd
Right Shifter
SRAM GX, 7spd
Brakes
SRAM Maven Bronze
Front Rotor
SRAM HS2 220mm
Rear Rotor
SRAM HS2 200mm
Cockpit
Grips / Bar Tape
Burgtec Bartender Pro Grip
Handlebars
OneUp Aluminum Bar, 35mm (Size S: Burgtec RW Alloy DH Bar, 31.8) S: 800mm, 15mm Rise; M-XL: 800mm, 35mm Rise
Headset
Cane Creek 50 IS41 Headset 1-1/8"
Saddle
Fizik Alpaca Gravita X5 Saddle
Seatpost
RaceFace Chester, 31.6 All Sizes: 325mm
Stem
OneUp Direct Mount Stem
Wheels
Front Rim
Reserve 30|HD AL 6069
Front Hub
Industry Nine 1/1, 20x110 Boost, 32h -or- DT Swiss 350, 20x110 Boost, 32h
Front Tire
Maxxis Assegai 29"x2.5", 3C MaxxGrip, DH
Rear Rim
Reserve 30|HD AL 6069
Rear Hub
Industry Nine 1/1, 12x157, HG, 32h -or- DT Swiss 350, DEG DF, 12x157, HG Slim, 32h
Rear Tire
Maxxis Minion DHR II 27.5"x2.5", 3C MaxxGrip, DH
Valves
Reserve Fillmore Valves
Headset
IS41 upper/ IS41 lower (Reach Adjust)
Fork Offset
52mm
Suspension System
VPP
Rear Travel
208mm
Recommended Sag
30%
Shock Length
250mm
Shock Stroke
75mm
Shock Bushing Size Front
30x8
Shock Bushing Size Rear
30x8
Bottom Bracket Shell
Threaded 83mm
Max Chainring Size
36t
Front Derailleur Mount
None
Chainguide Standard
ISCG05
Rear Spacing
157mm
Rear Brake Mount
200mm or 220mm PM
Max Rotor Size
220mm
Max Tire Clearance
May vary according to tire and rim model
2.5"
Seat Clamp Diameter
36.4mm
