ConnectModule Retrofit Kit (BCM3100)
Product Details ConnectModule Retrofit Kit (BCM3100)
The Bosch ConnectModule Retrofit Kit is a GPS tracker and alarm system designed for eBikes equipped with Bosch Smart System motors. It enables precise location tracking and theft protection through the eBike Flow app.

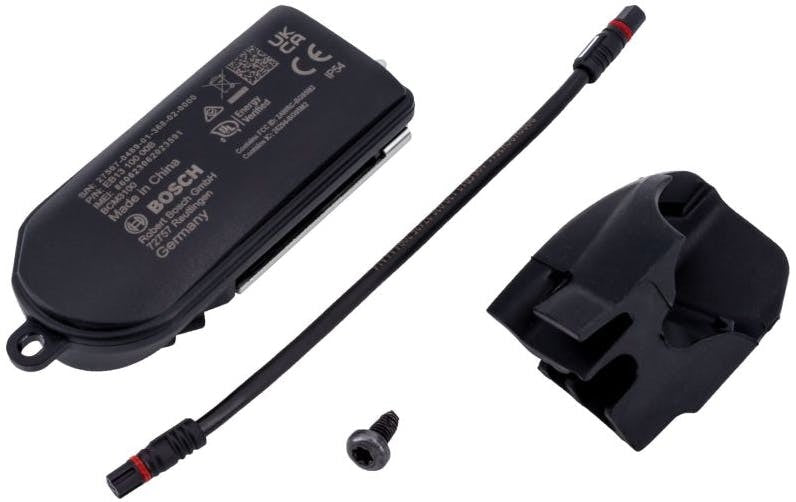

The kit includes a ConnectModule, mounting plate, holder, 100 mm display cable, and installation instructions. It features an integrated battery for operation even when the eBike battery is removed.
1). Remove the motor housing design cover.
2). Place the holder on the drive unit.
3). Detach the display cable from the drive unit and connect the ConnectModule cable.
4). Connect the display and ConnectModule cables appropriately.
5). Screw the mounting plate to the drive unit.
6). Reattach the motor housing design cover.
Compatible with Bosch Smart System motors from model year 2022 and later.
