Specifications

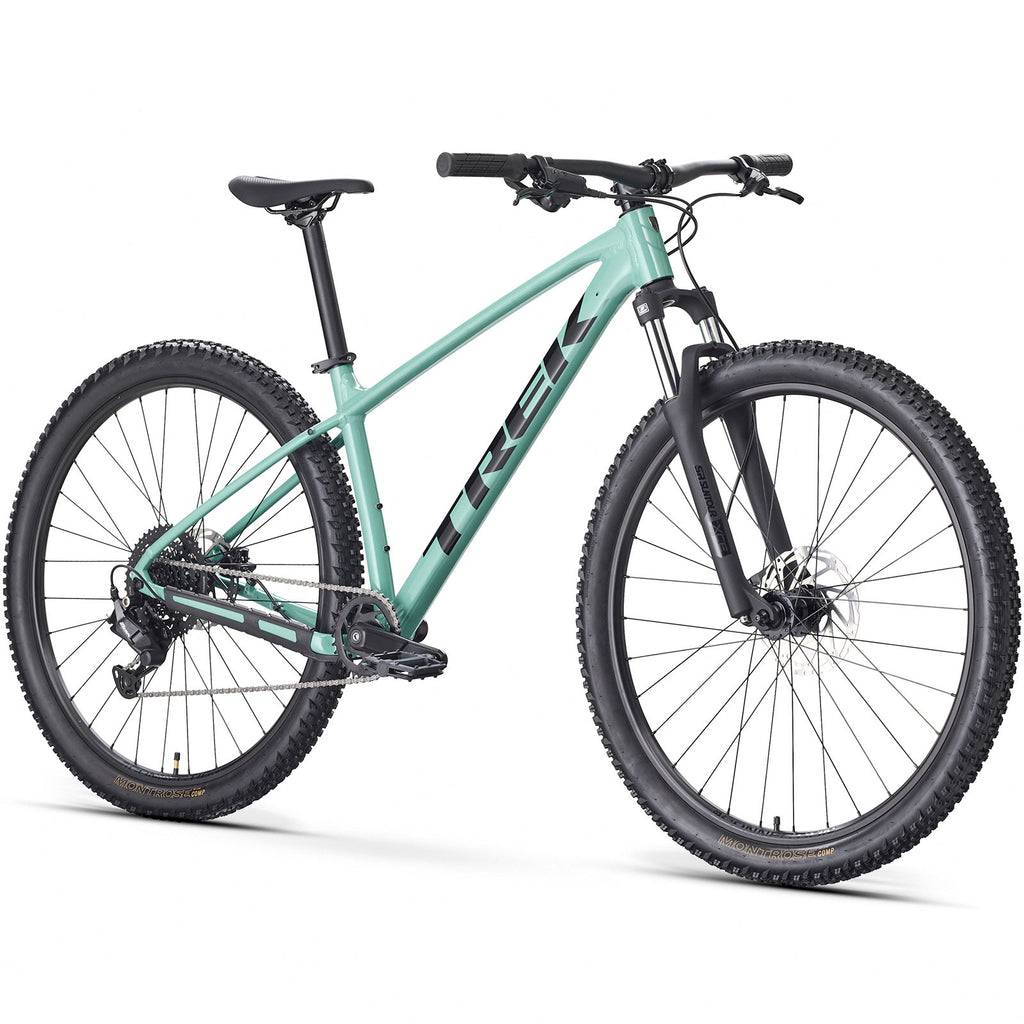

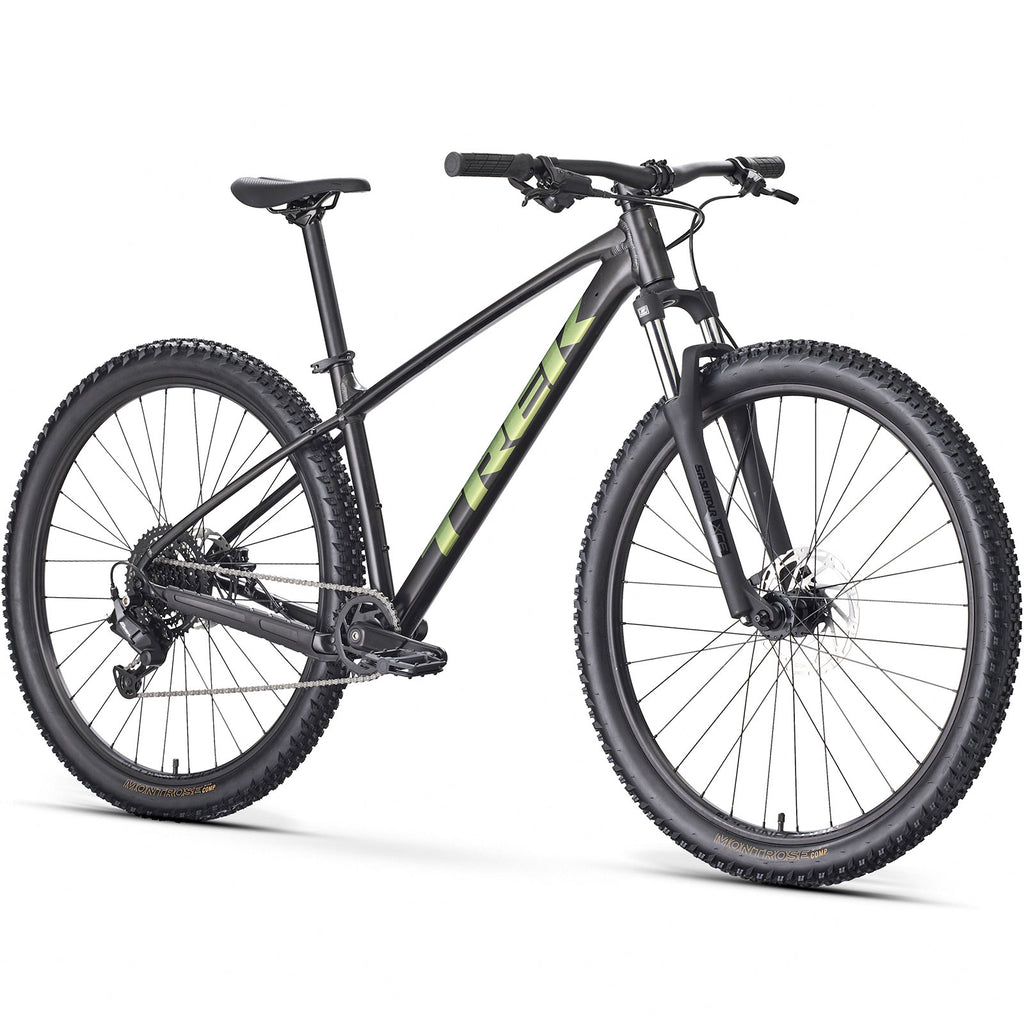

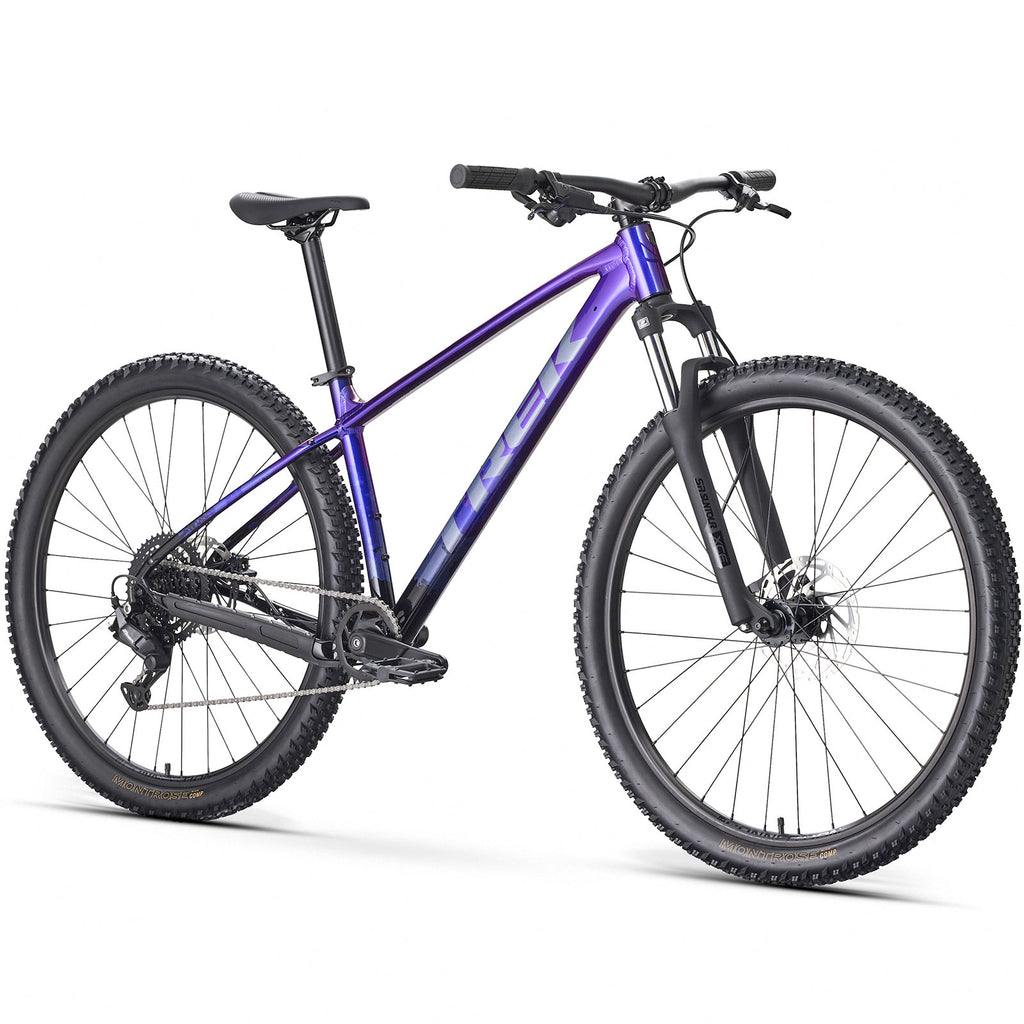

Marlin 4 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 8-speed Shimano ESSA shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
Frame
Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Fork
SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Hub front
Formula DC-20, alloy, 6-bolt, 100x5 mm
Hub rear
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm
Rim
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Tyre
Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40"
ShifterShimano M315, 8-speedRear derailleurShimano ESSA U2000
ProWheel
alloy, 30T narrow-wide steel ring, 175 mm length
Bottom bracket
Threaded cartridgeCassetteShimano HG300, 11-45, 8-speedChainKMC Z8.3, 8-speed
Stem
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Brake
Tektro HD-M275 hydraulic disc
Max brake rotor sizes - Frame: 180mm
Weight
14.90 kg / 32.85 lbs
Power BH-M286TF hydraulic disc, 180 mm rotor
