Specifications

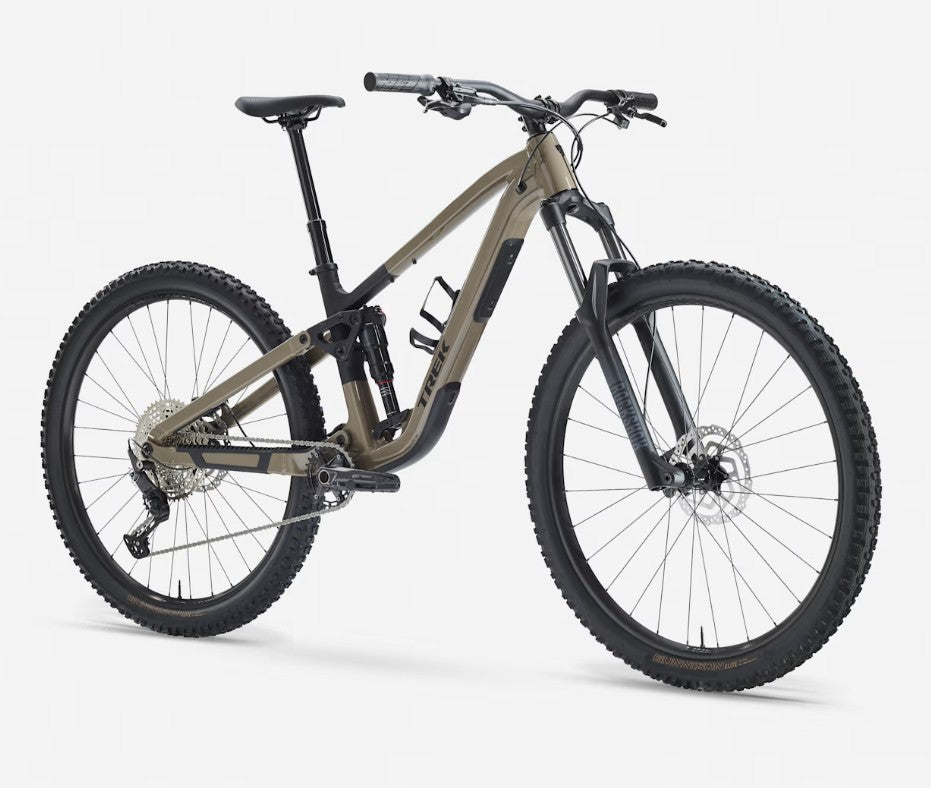

The Fuel EX 5 is an aluminium trail bike built for total versatility wherever you ride. It comes with a RockShox Recon Silver fork and RockShox Deluxe Select suspension, tubeless-ready wheels, a 12-speed Shimano Deore drivetrain, and a TranzX dropper post, so you're ready for anything.
Frameset
Frame
Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
*Fork
Size: S, M, L, XL
Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15 mm Maxle Stealth, 150 mm travelSize: S, M, L, XL
RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel
*Shock
Size: S, M, L, XL
RockShox Super Deluxe Select+ RT, 205mm x 60mmSize: S, M, L, XL
RockShox Deluxe Select, 205mm x 60mm
Wheels
Hub front
Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
Hub rear
Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
Skewer rear
Bontrager Switch thru axle, removable lever
*Rim
Size: S, M, L, XL
Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
Size: S, M, L, XL
Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
*Tyre
Size: S, M, L, XL
Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40"
Size: S
Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
29x2.50"
Drivetrain
*Shifter
Size: S, M, L, XL
Shimano SLX M7100, 12-speed
Size: S, M, L, XL
Shimano Deore M6200
*Rear derailleur
Size: S, M, L, XL
Shimano XT M8100, long cage
Size: S, M, L, XL
Shimano Deore M6200, long cage
Crank
Shimano MT520 Deore, 30T ring, 55mm chainline, 165mm length
Bottom bracket
Shimano BB-MT501 BSA
Cassette
Shimano M6200, 10-51, 12-speed
Chain
Shimano Deore M6100, 12-speed
Max. chainring size
Max: 34T (oval – 32T) Min: 30T (oval – 32T)
Componets
Saddle
Bontrager Verse Short, stainless steel rails
*Seatpost
Size: S
TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm
Size: M, L, XL
TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm
Handlebar
Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
Grips
Trek Line Comp, nylon lock-on
Stem
Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
Head set
FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown
Brake
Shimano hydraulic disc, MT201 lever, MT200 calliper
Brake rotor
Shimano RT10, CenterLock, 180 mm
Rotor size
Max brake rotor sizes - Frame: 203mm
Weight
16.88 kg
