Specifications

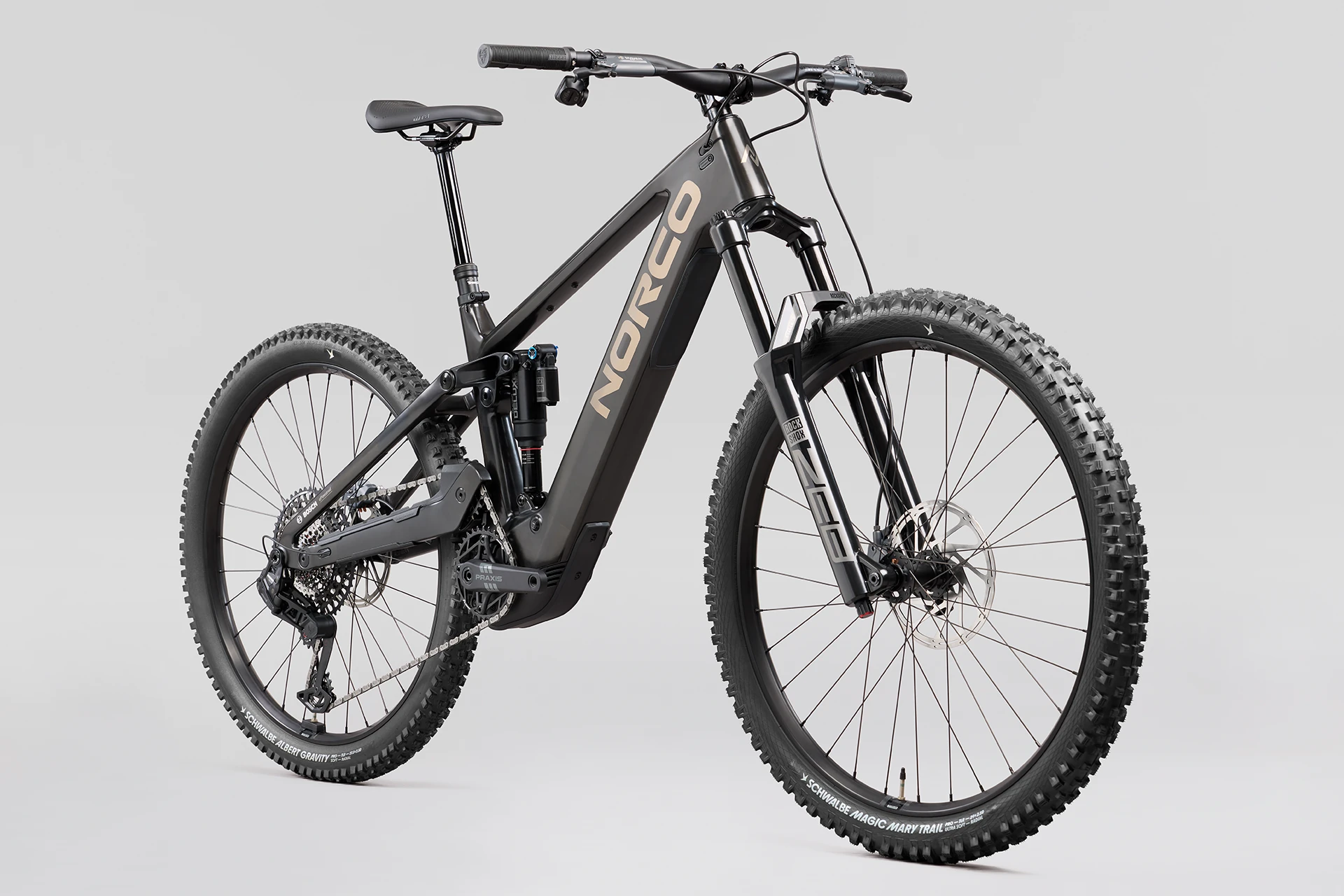

Start fast and finish strong on the new Sight VLT CX. Now with the new Bosch Performance Line CX motor, it’s almost 20% lighter than our previous generation, so you can commit harder and ride longer than ever before. The high pivot suspension layout with 160/150mm travel provides smooth, confident handling through rough terrain; this bike punches above its weight without losing playfulness.
The new Bosch Performance Line CX drive unit is lighter and quieter than previous models, without losing the exceptional torque and power the CX system is known for.
Sight VLT CX comes out of the box with 85 Nm of maximum torque, 600 watts of peak motor power, and up to 340% support, for an ideal blend of power and enjoyment while balancing wear and range. Update through the Bosch Flow App to access even higher levels, for up to 120Nm, up to 750 watts, and up to 600% support
The VPSHP (Virtual Pivot Suspension | High Pivot) layout has a rearward axle path that moves out of the way of square-edged hits, maintaining momentum and smooth handling through the rough.
Frameset
FRAME
Carbon Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
FORK
RockShox Zeb Select+,160mm Travel, 44mm Offset, E-MTB Rated, Fender Included
REAR SHOCK
RockShox Super Deluxe Select+, 205x60mm TR
Drivetrain
REAR DERAILLEUR
SRAM S1000 Eagle AXS T-Type, 12sp
CRANKSET
Praxis HD Aluminum Bosch Cranks, 34T, 155mm (S2,S3) - 160mm (S4, S5)
BOTTOM BRACKET
Bosch BDU38
CASSETTE
SRAM 1275 Eagle T-Type, 10-52T, 12sp
CHAIN
SRAM Eagle 70 T-Type, 12spd
Brakes
FRONT BRAKE
SRAM Maven Bronze, Metallic Pads
FRONT BRAKE ROTOR
SRAM HS2, 200mm, 2mm thickness, 6 bolt
REAR BRAKE
SRAM Maven Bronze, Metallic Pads
REAR BRAKE ROTOR
SRAM HS2 180mm, 2mm thickness, 6 bolt
BRAKE LEVERS
SRAM Maven Bronze
Components
HANDLEBAR
Norco 6061 DB Alloy, 800mm, 25mm Rise(S2) - 35mm Rise(S3,S4,S5)
STEM
Norco Alloy, 40mm Length, 35mm Clamp
SEATPOST
TranzX YSI08 RAD+ Travel Adjust Dropper, 31.6mm, 150mm (S2) -170mm (S3) -200mm (S4, S5)
HEADSET
FSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered, ( ZS44/28.6 | ZS56/40 )
SADDLE
WTB Rocket Fusion Med, 142x250 mm
GRIPS
WTB Wavelength, 140mm Length
SEATPOST CLAMP
Norco Alloy Nutted Clamp, 34.9mm ID
TOOL
OneUp EDC Lite
Wheels
FRONT HUB
Bear Pawls BMB-003,15x110mm Boost, 32H, 6 Bolt
REAR HUB
DT Swiss 370, 12x148 Boost,XD, 32H, 6 Bolt
RIMS
WTB KOM Team i30 TCS 2.0, 30mm, 32H, 29"-27.5 F/R
FRONT TIRE
Schwalbe Magic Mary, Trail casing, Ultra Soft , Radial, 29x2.5"
REAR TIRE
Schwalbe Albert, Gravity Pro, Soft, Radial, 27.5x2.5"
SPOKES/NIPPLES
Sapim Sprint DB Spokes 2.0/1.8/2.0,Black stainless steel
Electric Components
DRIVE UNIT
Bosch Performance Line CX, 100 Nm / 750W
BATTERY
Bosh Power Tube 800 Wh
DISPLAY
Kiox 400c
WEIGHT
23.51kg (51.8 lbs)
