Specifications

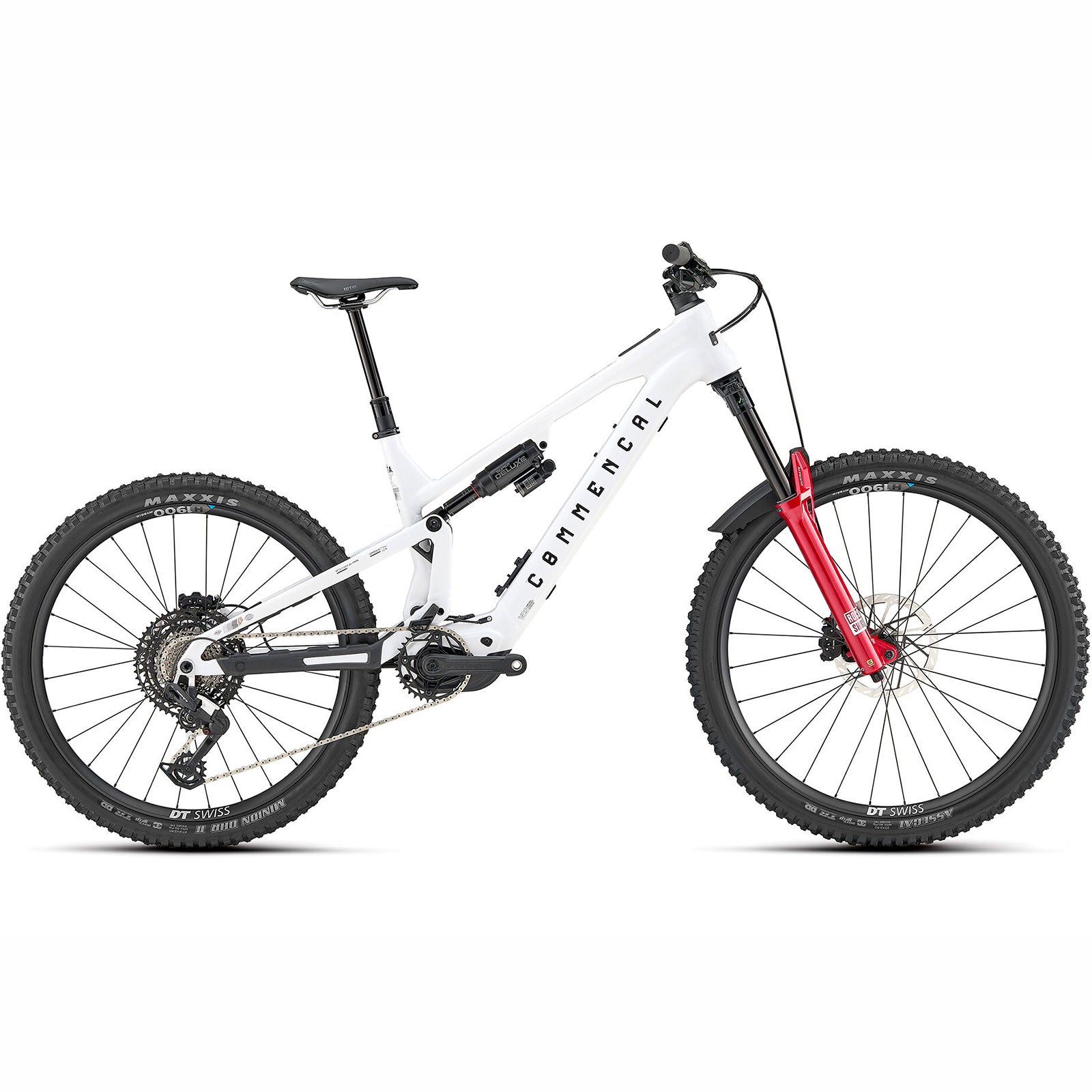

The META POWER SX AVINOX combines power, liveliness, handling and manoeuvrability. It's designed for those who want long rides with a powerful and torquey motor. Complete with 160mm of travel, the suspension benefits from our Virtual Contact System (VCS) linkage. Low in weight and with a 27.5" rear wheel, this bike is responsive and particularly agile.
The META POWER SX AVINOX ROCKSHOX offers a configuration designed to get the best from our virtual pivot point kinematics, both climbing and descending.
- The new ROCKSHOX Zeb Ultimate in 170mm combined with the ROCKSHOX Super Deluxe Select shock absorber offers support, sensitivity, and precision to perform on the most technical terrain.
- Braking relies on SRAM Maven with SRAM HS2 200/200 mm discs, ensuring power and consistency.
- DT SWISS H1900 wheels mounted on DT SWISS 370 hubs are particularly strong and provide dynamism and comfort.
- The SRAM Eagle 90 T-Type 12-speed drivetrain, combined with the E13 Helix Core 155 mm crankset, guarantees precise gear shifts and exemplary durability.
FRAME
META POWER SX AVINOX, 160 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6
AVINOX M2S MOTOR
150 Nm peak torque with a 1,300 W boost mode, and 130 Nm / 1300 W in normal operation
AVINOX BATTERY
600 Wh on S, 800 Wh on M / L / XL, Fully integrated main battery
AVINOX 508w Fast Battery charger
SHOCK
ROCKSHOX Super Deluxe Select 2027
230 x 60 mm, Debonair +, 2-postion (open/firm) lever, Rebound
FORK
ROCKSHOX Zeb Ultimate 2027 170 mm
29", damper 3.2 RC2 Linear XL, HSC, LSC, HSR, LSR, Boost (15x110mm), 44mm offset
BRAKES
SRAM Maven Base, 4 pistons
Rotors: SRAM HS2, 6-bolt, 220 mm
SHIFTERS
SRAM Eagle 90
12s
REAR DERAILLEUR
SRAM Eagle 90
12s, T-TYPE
CRANKSET
E13 HELIX CORE, 155 mm crank arms
Chainring: SRAM CR T-Type, 34t
RIMS
DT SWISS H 1900
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width
HUBS
DT SWISS 370 Hybrid
Rear: 28h, sealed bearings, 12 x 148 mm, Hyperglide - Front: 28h, sealed bearings, 15 x 110 mm
TYRES
Rear: MAXXIS Minion DHRII - Front: MAXXIS Assegai
Rear: 27,5x2.50WT 3C MaxxGrip, Double Down, TR - Front: 29x2.50WT 3C MaxxGrip, Double Down, TR
